Wed 1 Mar 2017


16bit インストーラーの Windows Draw 7 を 64bit Windows (Win10) にインストールする anchor.png

おそらく、Windows 95 の頃から気に入ってずっと使っているアプリケーションで Micrografx の Windows Draw というものがあるのですが、64bit の Windows にインストールすることができず、残していた Windows XP のマシンで使用していたのですが、とうとうその XP のマシンが壊れてしまい、残すは ESXi の中のバーチャルマシンとしての XP で動かすしかなくなってしまいました。

しかし、やはりいつも使用しているマシンで利用したいと考え、最新の Windows 10 で SETUP.EXE を起動してみました。


やはり、こうなりますね。インストールできません。
ちょっと調べてみたところ、InstallShield Ver.5.x なら、動作を阻害しているプロセスを止めればインストールできるようなのですが・・・


InstallShield 3.0 のようです。ここで諦めようとおもったのですが、もうひと踏ん張りして検索してみたところ次のサイトが見つかりました。

  • Installing 32-bit programs with 16-bit setup launcher stubs

    InstallShield 3 shortcut

    Download the InstallShield 3 Engine without Windows/Wine:

    View the version properties of the Setup Launcher, usually called SETUP.EXE. (under Windows, right click, select Properties, and click the "Version" tab).

    If the setup version is 3.xx.xxx, then as a convenience, you may download the Setup Engine executable directly from here rather than manually extracting it: Is3Engine.zip

    Place this file in a WRITABLE folder with the rest of your application install files and run it instead of setup.

ということなので、Is3Engine.zip をダウンロードして解凍してできた setup32.exe をインストール CD をまるごとコピーしたフォルダーに置き起動してみます。


おお!来たね〜!

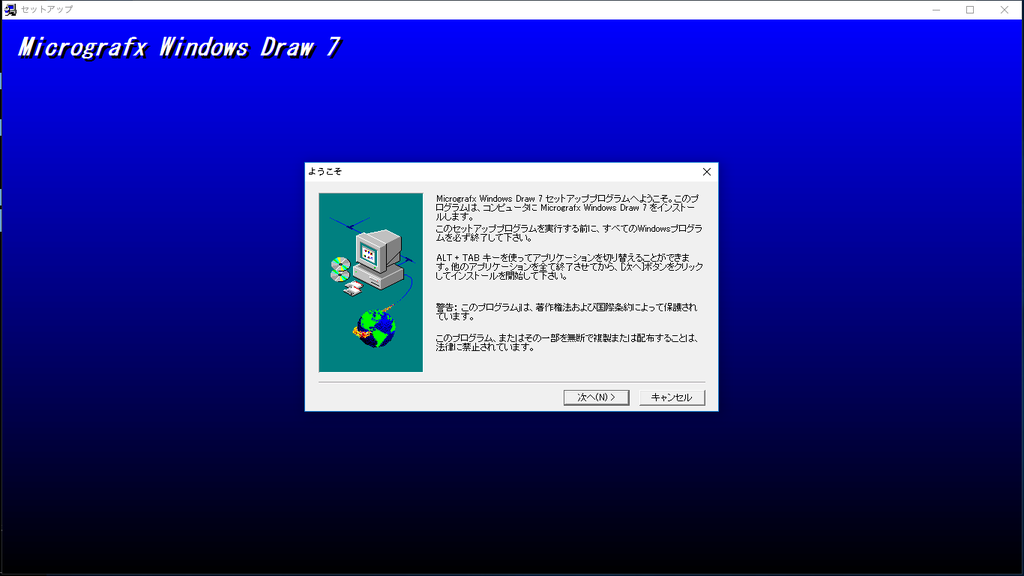

インストールが開始されました。


順調に進みます。

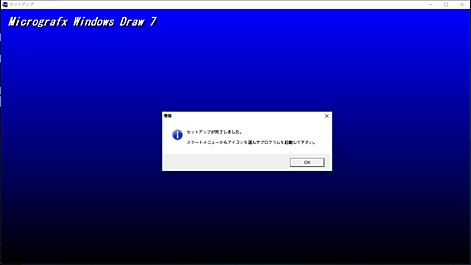

おお!無事に完了した模様。


わーい!見事に起動しました!


ちゃんと使えます!

そして、仕上げに現在のサポート先のインフィニシスのダウンロードページよりアップデーターをダウンロードして適用します。


とても古いアプリケーションですが、自分的には慣れていてとても使いやすいので、これでまた作業が捗ります。 :-)
